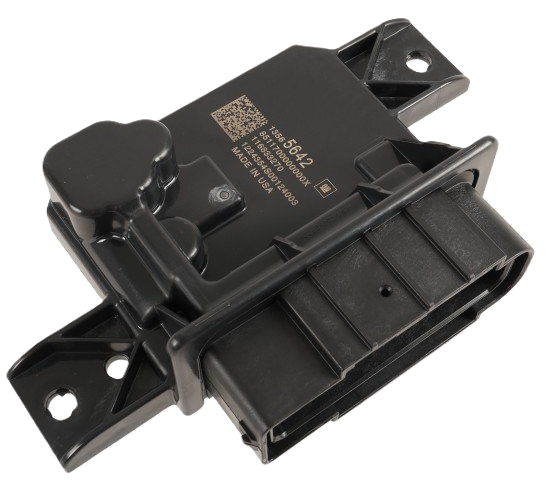

Programmed Fuel Pump Power Control Module FPCM 13565642 — 2017-2023 Silverado Sierra 2500HD 3500HD 6.6L L5P Duramax — Replaces 13540026 13558813 13526235

$225.00

Plug and Play.

Fuel Pump Power Control Module (FPCM) for 2017–2023 Chevrolet Silverado and GMC Sierra 2500 HD / 3500 HD with the 6.6L L5P Duramax, single fuel tank. Programmed to your VIN with the current GM calibration before it ships.

GM part number 13565642 is the current service number. It supersedes and replaces all of the following — if your original module carries any of these, this is your part:

13514309 · 13518065 · 13526235 · 13531869 · 13540015 · 13540018 · 13540026 · 13558813 · 23108968

Single fuel tank applications only. Trucks built with the dual fuel tank option use a different module. If you are not sure which you have, contact us with your VIN before ordering and we will confirm.

Symptoms this module causes when it fails:

Crank / no start, no lift pump operation
Hard starting, extended crank, stalling under load
P023F, P0230, P0231, P0232, P069E, U0109 (lost communication with fuel pump control module)
Low fuel rail pressure codes with a mechanically good pump
No fuel pump prime with key on

What you get:

One FPCM programmed to your VIN with the latest GM calibration
No dealer programming, no setup procedure required on your end
Direct replacement — no wiring or harness changes

What we need from you at checkout:

Full 17-digit VIN
Year / Make / Model
Part number off your original module
Single or dual fuel tank

Vehicle Fitment

CHEVROLET SILVERADO 1500 2020-2021 6.6L L5P Duramax

CHEVROLET SILVERADO 1500 LTD 2022 6.6L L5P Duramax

CHEVROLET SILVERADO 2500 2017-2023 6.6L L5P Duramax

CHEVROLET SILVERADO 3500 2017-2023 6.6L L5P Duramax

CHEVROLET SILVERADO 4500 HD 2019-2021 6.6L L5P Duramax

CHEVROLET SILVERADO 5500 HD 2019-2021 6.6L L5P Duramax

CHEVROLET SILVERADO 6500 HD 2019-2021 6.6L L5P Duramax

GMC SIERRA 1500 2020-2021 6.6L L5P Duramax

GMC SIERRA 2500 2017-2023 6.6L L5P Duramax

GMC SIERRA 3500 2017-2023 6.6L L5P Duramax

Single fuel tank only. Fitment is confirmed by VIN before programming.

Gas trucks: this is not the module for a 2019–2022 gasoline Silverado or Sierra 1500. Those use a different part — message us and we will point you to the right listing.

Not sure if this is your module? Text a photo of the label to 605-728-0591 or email evan@ewaltsautotuning.com.
