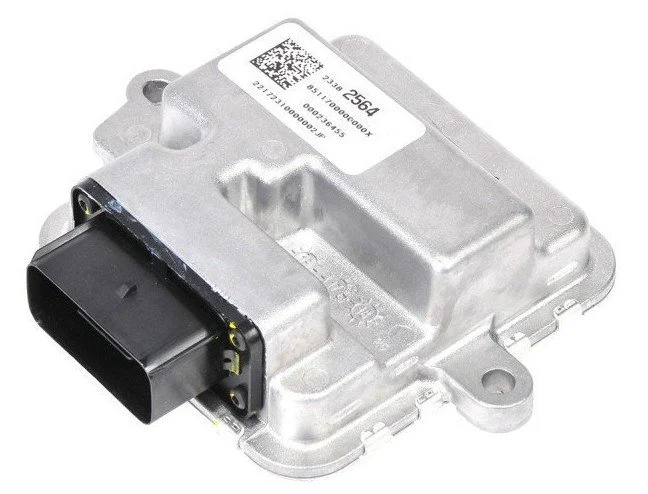

GM Fuel Pump Control Module (FPCM) — also called a Fuel Pump Driver Module or Fuel System Control Module (FSCM) — part number 23382564, programmed to your VIN and ready to install.
23382564 is the current GM service number. It supersedes and replaces:
23482909 · 23199154
Before you order — we need the label number. GM builds this module in several label variants under one part number. Send us the number printed on the label of your original module along with your VIN. If the label is unreadable, send the VIN and we'll pull the correct variant.
How it works: this module acts as a smart driver, using Pulse Width Modulation (PWM) to vary the voltage sent to the in-tank fuel pump. That lets the ECM request dynamic fuel pressure based on engine load, rather than running the pump at a static 100% duty cycle.
Symptoms of a failed module:
Crank / no start, no fuel pressure
Intermittent stalling, cutting out at speed
P023F, P0230, P0231, P0232, P069E, P2635, U0109 (lost communication with fuel pump control module)
No fuel pump prime with key on
What you get:
One FPCM programmed to your VIN with the latest GM calibration
No dealer programming, no relearn required
Direct replacement — no wiring or harness changes
What we need from you at checkout:
Full 17-digit VIN
Year / Make / Model / Engine
Label number off your original module
Fits:
Buick Enclave 2015–2020
Buick Envision 2016–2020
Buick LaCrosse 2017–2019
Cadillac CT6 2016–2018
Cadillac CTS 2015–2019
Cadillac XT5 2017–2019
Chevrolet Blazer 2019–2024
Chevrolet Camaro 2016–2022
Chevrolet Colorado 2015–2022
Chevrolet Cruze 2016–2019
Chevrolet Equinox 2018–2019
Chevrolet Traverse 2015–2020
GMC Acadia 2015–2019
GMC Acadia Limited 2017
GMC Canyon 2015–2022
GMC Terrain 2018–2019
Full-size trucks and SUVs use a different module. 2019–2025 Silverado / Sierra gas → 13565641. 2017–2023 L5P Duramax → 13565642. 2021–2025 Escalade / Tahoe / Suburban / Yukon / Express / Savana → 13554821.
Not sure this is the right module? Send us your VIN or the label number off your unit and we'll confirm the exact match — same business day, Mon–Fri.
