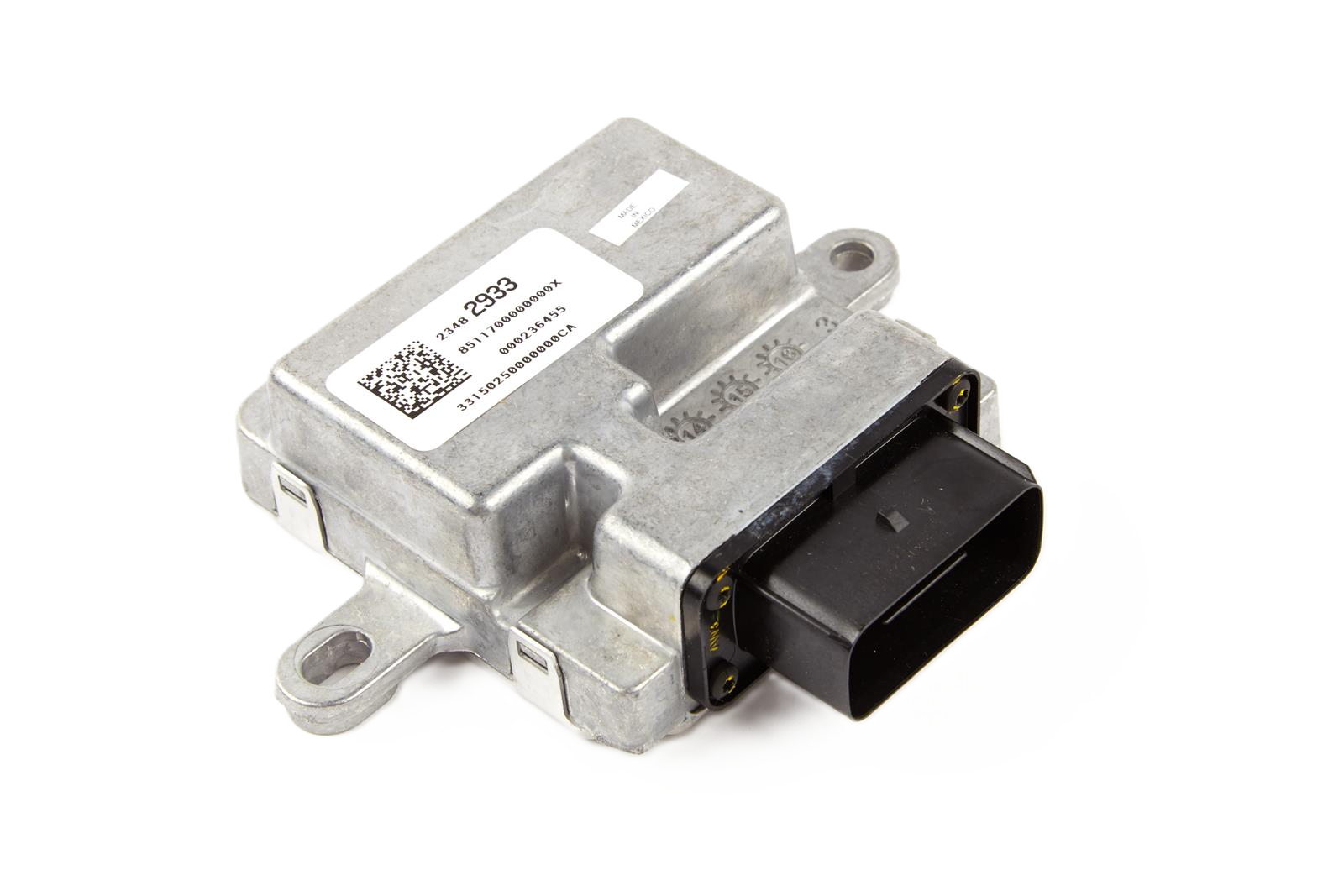

GM Fuel Pump Power Control Module (FPCM) — also called a Fuel Pump Driver Module or Fuel System Control Module (FSCM) — part number 23482933, programmed to your VIN and ready to install.
23482933 is the current GM service number. It supersedes and replaces:
23103795 · 23200138
If your original module carries either number, this is your part. Modules ship stamped 23200138 or 23482933 — both are correct.
How it works: this module acts as a smart driver, using Pulse Width Modulation (PWM) to vary the voltage sent to the in-tank fuel pump. That lets the ECM request dynamic fuel pressure based on engine load, rather than running the pump at a static 100% duty cycle.
Symptoms of a failed module:
Crank / no start, no fuel pressure
Hard starting, extended crank
Intermittent stalling, cutting out at speed
P023F, P0230, P0231, P0232, P069E, U0109 (lost communication with fuel pump control module)
No fuel pump prime with key on
What you get:
One FPCM programmed to your VIN with the latest GM calibration
No dealer programming, no relearn required
Direct replacement — no wiring or harness changes
What we need from you at checkout:
Full 17-digit VIN
Year / Make / Model / Engine
Part number off your original module
Fits:
Buick Allure 2013 3.6
Buick LaCrosse 2013 3.6
Buick Regal 2013–2017 2.0, 2.4
Cadillac SRX 2013–2016 3.6
Chevrolet Captiva Sport 2013–2015 2.4, 3.0
Chevrolet Equinox 2013–2017 2.4, 3.6
Chevrolet Malibu 2013–2016 2.0, 2.5
GMC Terrain 2013–2017 2.4, 3.6
Year boundaries matter on this one:
2018+ Equinox and Terrain are a new generation and use a different module — see our 23382564 listing.
2011–2012 SRX uses 20867261 — see that listing.
Not sure which one you need? Send your VIN and we’ll confirm before you order.
Turnaround: 2-5 business days. Closed weekends — turnaround is counted in business days.
Shipping is calculated at checkout and is not included in the listed price. Multiple modules ship in one box and we refund the duplicate shipping charge.
Text a photo of your module’s label to 605-728-0591 or email evan@ewaltsautotuning.com and we’ll confirm the exact match — same business day, Mon–Fri.
