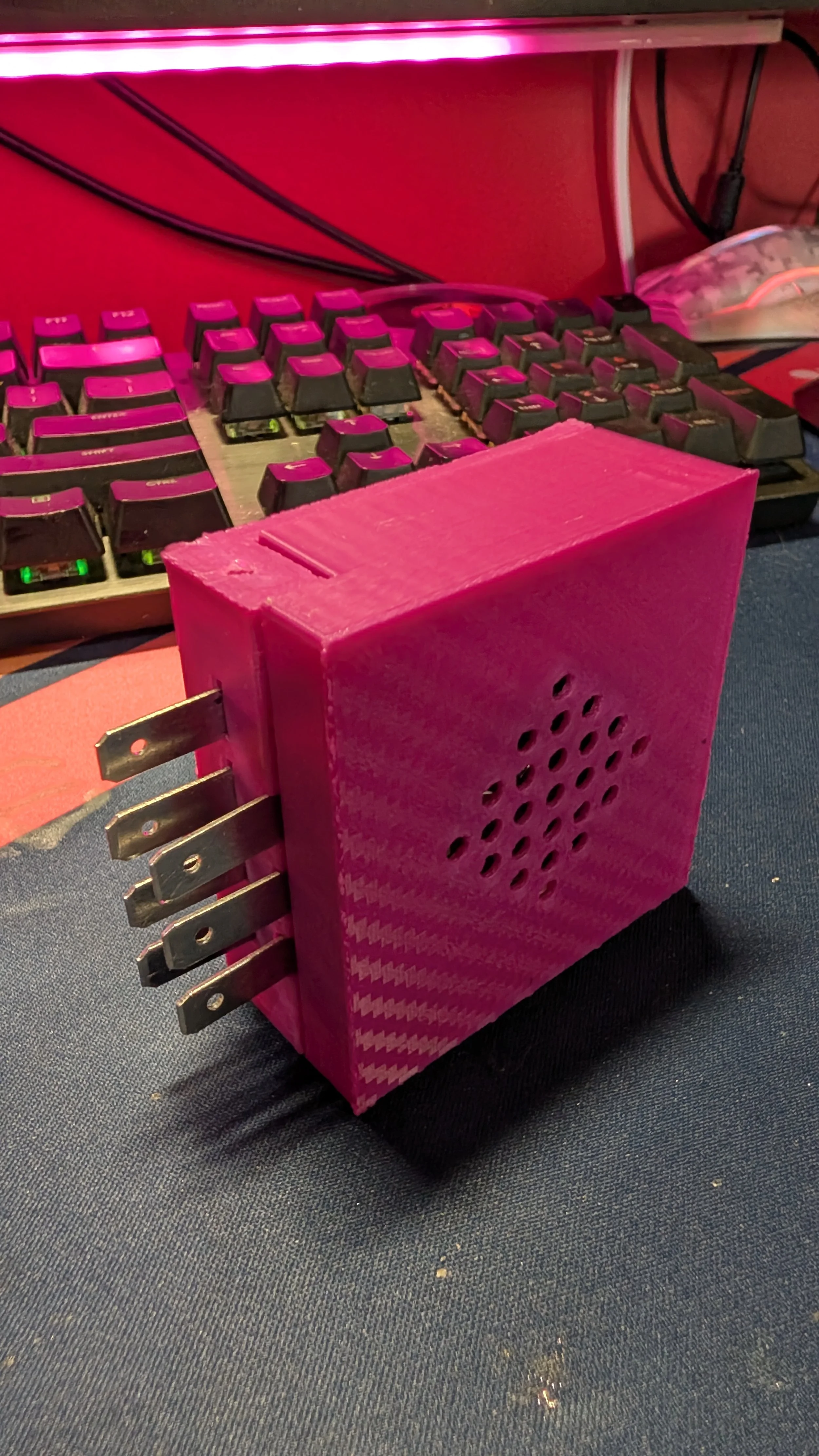

Ewalt’s Custom Programmable MP3 Warning Module (GM & Jeep)

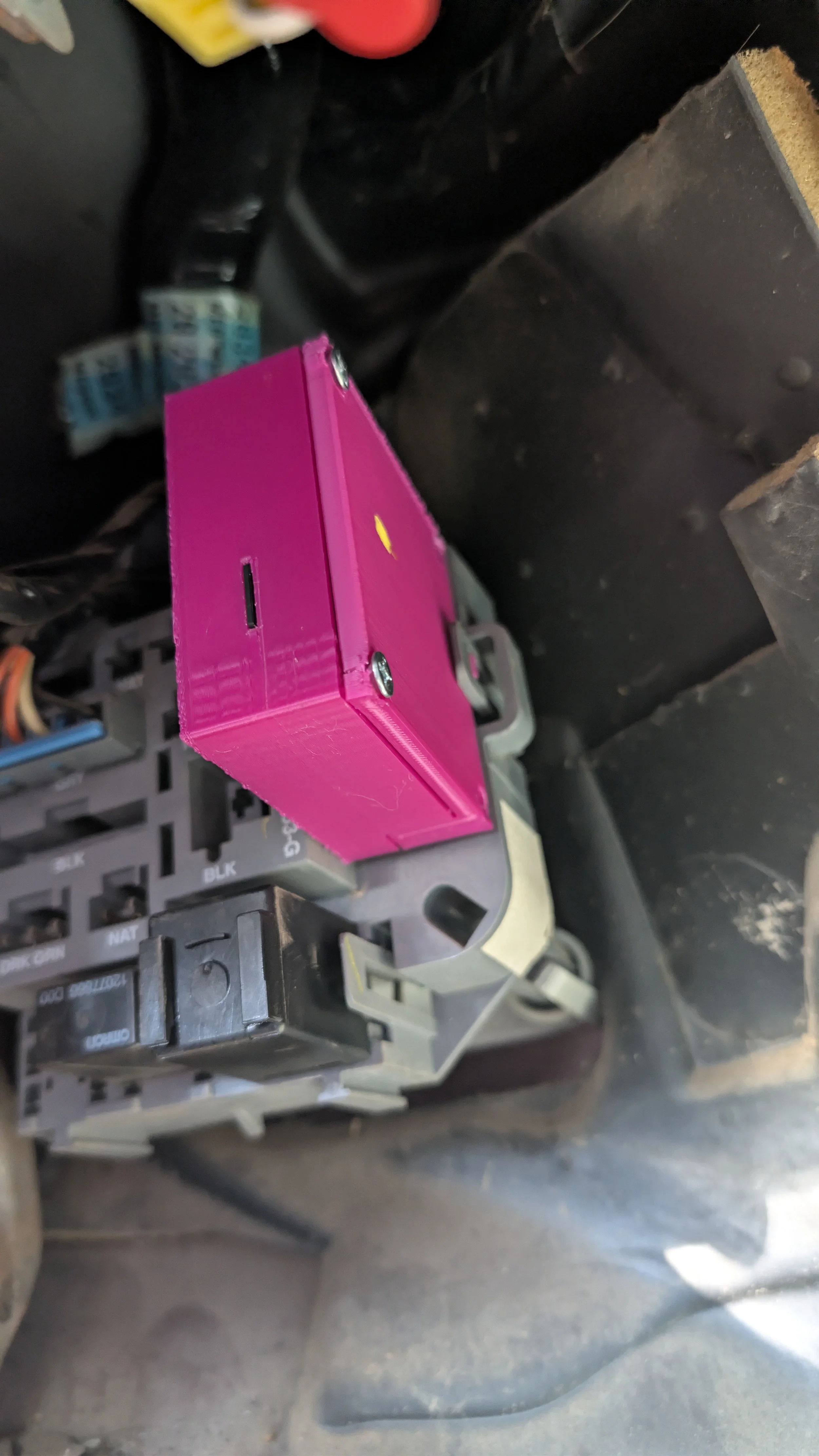

Direct plug-and-play replacement for the factory warning buzzer in 1981–2002 GM trucks, cars, vans, and 1984–1996 Jeep XJ, YJ, and TJ platforms. Load any MP3 — modern chimes, engine sounds, movie quotes — with full OEM priority logic and dash light sync. Driven by an ATtiny84 microcontroller and genuine YX5200 audio silicon, the smart-logic processor ensures tracks never overlap or stutter.

FEATURES

Smart Audio Handling — Actively monitors playback state. Supports clips of any length (0.5-second dings to 3-minute songs) without overlap or stutter.

Custom Startup Sound — Fires a dedicated MP3 the instant ignition hits RUN. Engine roar, system chime, or custom audio. Single-shot, non-repeating.

Synchronized Dash Indicator — High-current MOSFET pulses your factory seatbelt cluster light in sync with audio, then holds solid if the belt stays unbuckled.

Intelligent Priority Sequencing — Prevents audio collisions. Background state monitoring prioritizes: Startup → Headlamps → Key-in-Ignition → Seatbelt.

OEM Seatbelt Nag Timer — Mimics modern GM logic: 5-chime burst at key-on, 60-second silent interval, repeat. Cancels instantly when belted.

Optocoupler-Isolated Inputs — All 12V trigger lines are decoupled from the MCU. No voltage spikes reaching the logic board.

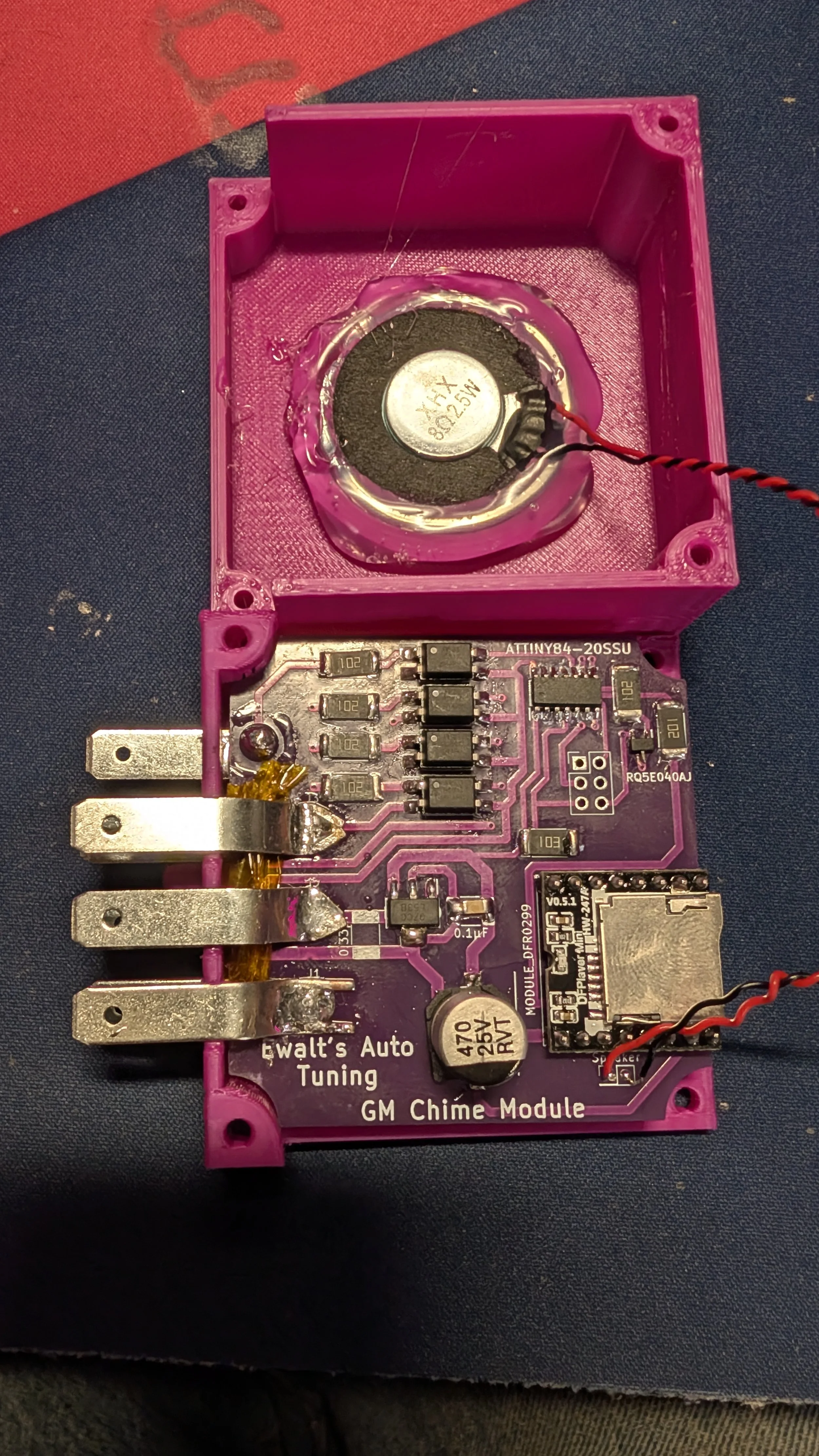

HARDWARE SPECIFICATIONS

Microcontroller: Atmel ATtiny84 — millisecond-precision timing and state machine logic

Audio Processor: Genuine DFRobot YX5200 with built-in 8002A 3W class-D amplifier

Idle Current: ~20 mA (no parasitic battery drain)

Signal Isolation: Optocoupler-decoupled on all 12V trigger inputs

Output Driver: RQ5E040AJ logic-level N-channel MOSFET for dash indicator

Power Regulation: LM2940 LDO with 470 µF LC input filtering

Connector: 8-pin direct-fit OEM warning buzzer connector

Storage: FAT32 MicroSD (up to 32 GB) — recommended 44.1 kHz / 128 kbps MP3

SD CARD FILE MAPPING

Place MP3 files in a root folder named "mp3" on a FAT32-formatted MicroSD card:

0001.mp3 — Headlamps ON (Ignition OFF)

0002.mp3 — Key in Ignition / Door Open (Ignition OFF)

0003.mp3 — Seatbelt Unbuckled (Ignition ON)

0004.mp3 — Welcome / Startup Sound (Ignition ON, single-shot)

VEHICLE COMPATIBILITY

Trucks, Vans & SUVs

Chevrolet:

1985–1999 C/K 1500, 2500, 3500

1992–1999 Suburban

1995–1999 Tahoe

1985–1999 Astro

1996–2002 Express 1500, 2500, 3500

1991–1994 S-10 / S-10 Blazer

1985–1989 Corvette (C4)

1990–1996 Corvette (C4)

1993–1995 P30 Step Van

GMC:

1985–1999 C/K 1500, 2500, 3500

1992–1999 Suburban

1992–1999 Yukon / Yukon Denali

1985–1999 Safari

1996–2002 Savana 1500, 2500, 3500

1991–1994 Jimmy

1991–1992 Sonoma

1991 Syclone

1992–1993 Typhoon

Cadillac:

1999–2000 Escalade

Jeep / AMC:

1984–1996 Cherokee (XJ)

1987–1995 Wrangler (YJ)

1993–1996 Grand Cherokee (ZJ)

1986–1992 Comanche (MJ)

1991 Grand Wagoneer

Passenger Cars

Chevrolet:

1982–1992 Camaro

1986–1996 Caprice / Impala SS

1981–1988 Monte Carlo / El Camino

1982–1990 Celebrity

1990–1994 Lumina

1982–1985 Citation

Buick:

1984–1987 Regal / Grand National / T-Type

1982–1996 Century

1985–1990 Electra / LeSabre

1986–1993 Riviera

1991–1996 Roadmaster

1985–1990 Estate Wagon

1985–1987 Somerset

1986–1991 Skylark

1982–1985 Skyhawk

Pontiac:

1982–1992 Firebird / Trans Am

1981–1987 Grand Prix

1986–1991 Bonneville

1985–1992 Grand Am

1982–1991 6000

1985–1986 Parisienne

1987–1989 Safari

Oldsmobile:

1981–1988 Cutlass / Cutlass Supreme

1982–1996 Ciera / Cutlass Ciera

1985–1992 98 / Regency

1985–1990 Delta 88

1985–1990 Custom Cruiser

1986–1992 Toronado

1982–1985 Firenza

Cadillac:

1993–1996 Fleetwood (RWD B-body)

1994–1995 DeVille / Concours

1994–1995 Eldorado

1994–1995 Seville

REPLACES GM PART NUMBERS

Direct replacement for over 30 factory warning buzzer assemblies. Contact us if your part number isn't listed.

22529441 — C/K trucks, Suburban, Astro, Safari (7-pin); superseded by 15969639

15969639 — GMT400 trucks, Express/Savana; replaced 22529441 (April 1997)

14101255 — 1993–95 Camaro "ding" tone; plug-and-play in GMT400 trucks

15042437 — 1996–2002 Express/Savana; interchanges with 15969639

25524794 — Final supersession of the standard chain (from Feb 1993)

14034321 — 1982–92 Camaro / Firebird

25518745 — 1990–96 C4 Corvette

88959440 — C4 Corvette; interchange with 14062571 / 10037041

14062571 — 1984–89 C4 Corvette

14062570 — 1984–85 C4 Corvette

10037041 — 1984–89 C4 Corvette

10150318 — 1993–2000 Escalade / late B-body

25515279 — Grand National / Regal / Monte Carlo / Cutlass

22533568 — Buick Electra/LeSabre/Skylark/Somerset, Pontiac Bonneville

14036201 — Early 1980s G-body / A-body

22514857 — Early 1980s A-body / G-body

10253233 — Alarm assembly with turn signal lamp function

03539049 — 1994–95 Cadillac Eldorado/DeVille/Seville

22535998 — Superseded 22529628; replaced by 25524794

22529628 — Superseded 01622578; replaced by 22535998

01622578 — Early number; superseded by 22529628 (March 1988)

96169875 — Korean-manufactured replacement for 14101255

10021724 — Early 1980s application

10098874 — Interchange with 14101255

22527058 — Interchange with 25531081 / 22531081

22531081 — Interchange with 22527058 / 25531081

25531081 — Interchange with 22527058 / 22531081

15557321 — Interchange with standard 7-pin family

19245591 — Interchange with standard 7-pin family

22521438 — Interchange with standard 7-pin family

22531857 — Discontinued January 2000

22537763 — 1985–91 Buick Skylark / Somerset

25529262 — 1985–88 Buick applications

COMPATIBILITY NOTES

Jeep Harness: Factory Jeep harnesses typically leave the headlight and key-in-ignition pins empty. The module plugs in and operates welcome + seatbelt functions immediately. Pin those two trigger wires if you want the additional warnings.

6-Pin vs 7-Pin: The 6-pin OEM modules omit the headlight-on warning (dimmer output). The 7-pin modules include headlight, key-in-ignition, and seatbelt inputs. All share the same physical connector footprint — this module covers both.

⚠ NOT COMPATIBLE — GMT800 / BCM Vehicles: Starting with the 1999–2002 Silverado, Sierra, Tahoe, and Yukon (GMT800) and 1998+ S-trucks, chime functions moved to the Body Control Module. These vehicles do not use a discrete chime module.

⚠ NOT COMPATIBLE — Class 2 Data Bus (2003+): On these platforms, the BCM commands the radio to generate chime tones over the Class 2 serial data bus. No discrete module is used.
